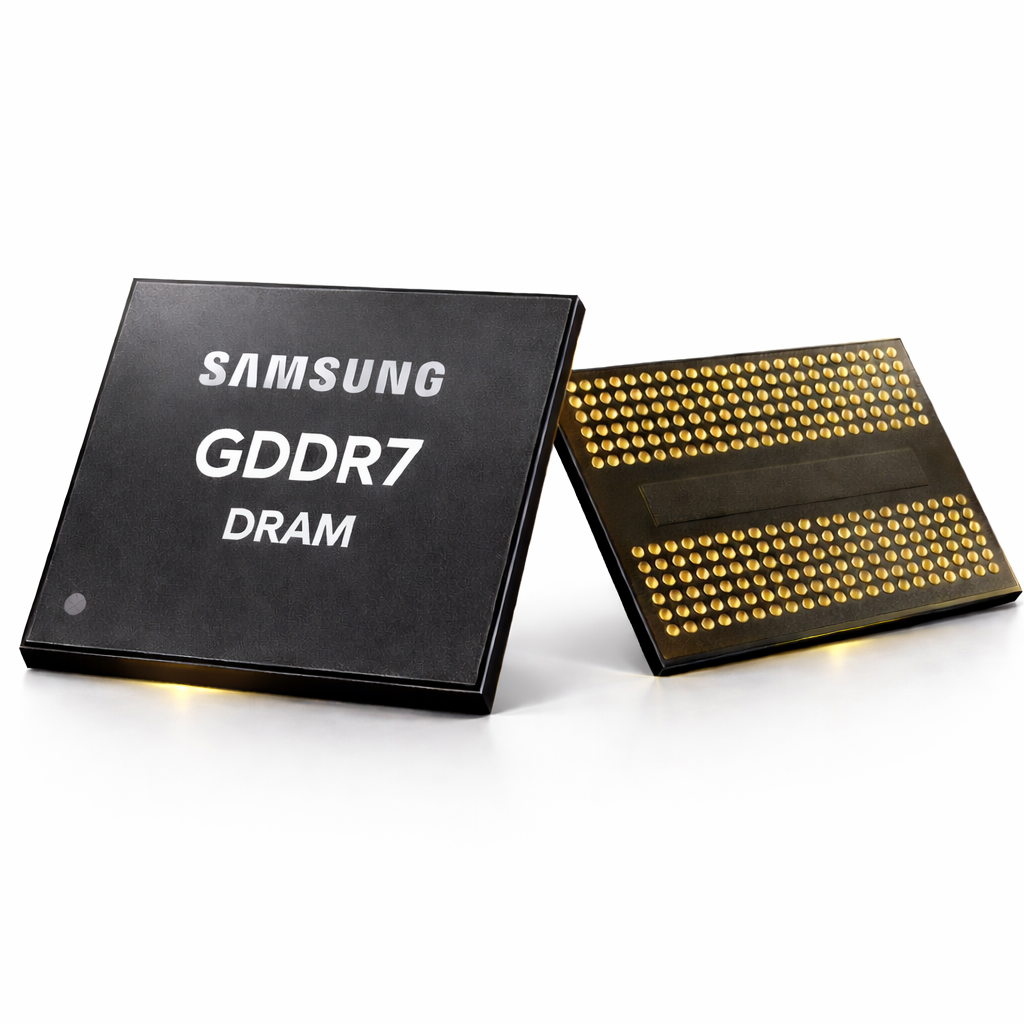

Samsung GDDR7 DRAM

Next-Generation Graphics Memory with PAM3 Signaling

Samsung GDDR7 DRAM represents the next evolution in graphics memory technology, introducing PAM3 signaling to significantly increase bandwidth while improving power efficiency. Designed for AI accelerators, high-end gaming GPUs, and high-performance computing platforms, GDDR7 expands the limits of graphics DRAM performance.

Key Technology Highlights

• Signaling Technology: PAM3 (Pulse Amplitude Modulation 3)
• Performance Increase: ~30% faster than GDDR6
• Power Efficiency: ~20% improvement over GDDR6
• Standby Power Reduction: Up to 50%
• Thermal Resistance Reduction: ~70%
• Application Areas: AI, Gaming GPUs, HPC, Automotive Graphics

PAM3 Signaling Architecture

Samsung GDDR7 is the first graphics DRAM to adopt PAM3 signaling. Unlike traditional NRZ (Non-Return-to-Zero) modulation which uses two signal levels, PAM3 uses three signal levels to transmit 1.5 times more data per signal cycle. This architectural enhancement enables approximately 30% higher data throughput compared to GDDR6 under comparable conditions.

The adoption of PAM3 improves effective bandwidth without proportionally increasing power consumption, making GDDR7 suitable for high bandwidth memory chip applications in AI training and real-time rendering systems.

Power Efficiency Improvements

GDDR7 reduces operating voltage requirements and integrates optimized circuit design to achieve approximately 20% better power efficiency compared to GDDR6. Standby power consumption is reduced by up to 50%, lowering total system power draw in GPU and accelerator platforms.

This contributes to improved total cost of ownership (TCO) in data centers and AI compute clusters.

Thermal Optimization

Through newly developed packaging materials and optimized signal routing, Samsung GDDR7 reduces thermal resistance by approximately 70%. Lower thermal resistance improves heat dissipation and minimizes performance degradation caused by sustained high-load operation.

Enhanced thermal stability supports higher sustained clock rates in gaming GPUs, AI accelerators, and high performance computing systems.

Application Areas

• Next-generation discrete graphics cards
• AI and machine learning accelerators
• High performance computing clusters
• Advanced automotive compute platforms
• Gaming consoles and workstation GPUs

FAQ

Q1: What is PAM3 and why is it important?
PAM3 (Pulse Amplitude Modulation 3) uses three signal levels instead of two, allowing higher data transmission per cycle and enabling approximately 30% higher throughput compared to GDDR6.

Q2: Is GDDR7 a memory module?
No. It is a discrete graphics DRAM chip designed for GPU PCB integration.

Q3: How does GDDR7 compare to GDDR6?
GDDR7 provides roughly 30% higher performance, 20% better power efficiency, and significantly improved thermal characteristics due to PAM3 signaling and packaging optimization.
