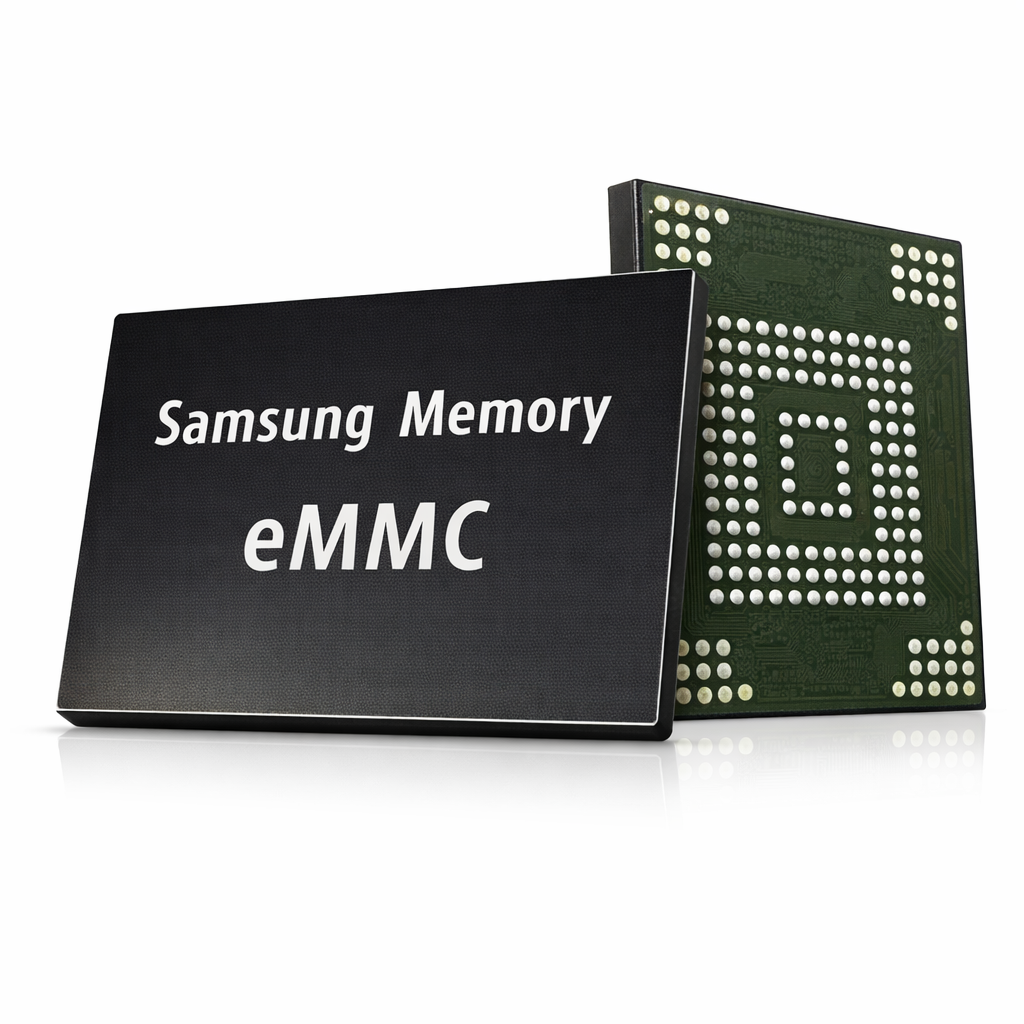

Samsung eMMC 4.41 Series
Type: Embedded
Brand: Samsung
Applications: Tablets, Smartphones
| Model | Capacity | Controller | Pin Count | Dimensions | Class | Standard |
|---|---|---|---|---|---|---|
| KLM4G1HE3F B00x | 4GB | VFX_U | 153-ball BGA | 11.5mm x 13mm | Class50 | eMMC4.41 |
| KLM8G2FE3B-B00x | 8GB | VFX_U | 153-ball BGA | 11.5mm x 13mm | Class100 | eMMC4.41 |
| KLMAG2GE4A-A00x | 16GB | VHX | 169-ball BGA | 12mm x 16mm | Class400 | eMMC4.41 |
| KLMBG4GE4A-A00x | 32GB | VHX | 169-ball BGA | 12mm x 16mm | Class400 | eMMC4.41 |
| KLMCG8GE4A-A00x | 64GB | VHX | 169-ball BGA | 12mm x 16mm | Class400 | eMMC4.41 |
Series Overview
Samsung eMMC 4.41 Series offers high-performance NAND Flash and advanced embedded controllers, enabling efficient data transfer, multitasking, fast app downloads, file transfers, high-definition video playback, and large file gaming. The compact design helps reduce PCB space usage and allows more room for other components. Standardized package and smart firmware provide flexible design space and universal compatibility, reducing design, development, and testing time while lowering costs.
The eMMC 4.41 specification adds features beyond version 4.4, including background operations, priority commands, large storage support, boot function, reliable and secure write protection, DDR interface high-speed transfer, and operation at 1.2V. Samsung eMMC 4.41 capacities range from 4GB to 64GB. The 4GB and 8GB models use the VFX_U controller in 11.5mm x 13mm, 153-ball BGA packages, while 16GB to 64GB models use the VHX controller in 12mm x 16mm, 169-ball BGA packages.
