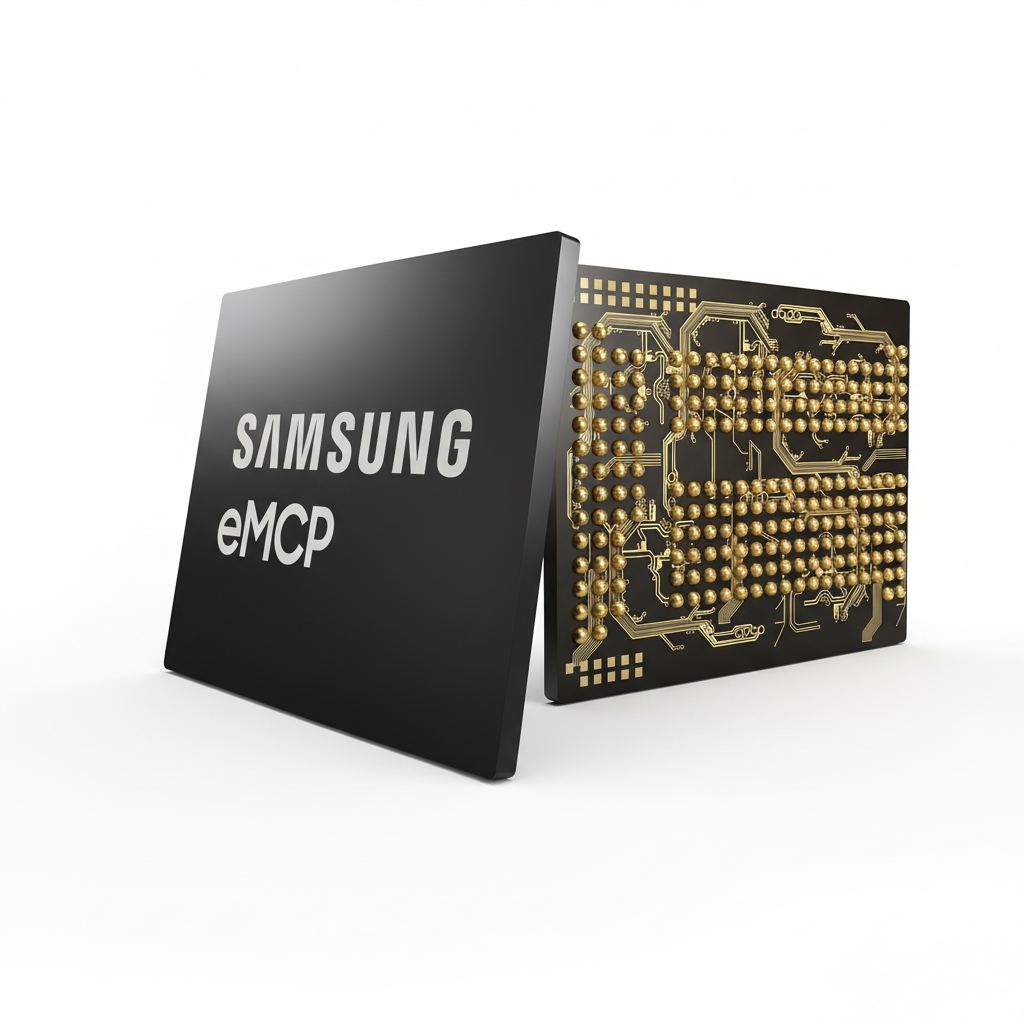

Samsung eMCP LPDDR2 Series
Samsung eMCP LPDDR2 Series
无法加载取货服务可用情况
Samsung eMCP LPDDR2 Series
Type: Embedded
Brand: Samsung
Applications: Tablets, Smartphones
| Model | Configuration | Architecture | Speed (MB/s) | Package | Remarks |
|---|---|---|---|---|---|
| KMN9W000RM | eMMC 2GB + LPDDR2 256MB | x8, x32 | 1066 | 162FBGA | Mass Production |
| KMN9W000XM | eMMC 2GB + LPDDR2 256MB | x8, x16 | 1066 | 162FBGA | Mass Production |
| KMNJS000FM | eMMC 4GB + LPDDR2 512MB | x8, x32 | 1066 | 162FBGA | Mass Production |
| KMNJS000ZM | eMMC 4GB + LPDDR2 512MB | x8, x32 | 1066 | 162FBGA | Mass Production |
| KMN5U000ZA | eMMC 4GB + LPDDR2 512MB | x8, x32 | 1066 | 162FBGA | Mass Production |
| KMN5U000ZM | eMMC 4GB + LPDDR2 512MB | x8, x32 | 800 | 162FBGA | Mass Production |
| KMN5U000FM | eMMC 4GB + LPDDR2 512MB | x8, x16 | 800 | 162FBGA | Mass Production |
| KMN5X000ZM | eMMC 4GB + LPDDR2 512MB | x8, x32 | 1066 | 162FBGA | Development |
| KMKJS000YA | eMMC 4GB + LPDDR2 768MB | x8, x32 | 800 | 162FBGA | Sample |
| KMK5U000YM | eMMC 4GB + LPDDR2 768MB | x8, x32 | 1066 | 162FBGA | Mass Production |
| KMKJS000VM | eMMC 4GB + LPDDR2 1GB | x8, x32 | 1066 | 162FBGA | Mass Production |
| KMK5U000VM | eMMC 4GB + LPDDR2 1GB | x8, x32 | 1066 | 162FBGA | Mass Production |
| KMK5X000VM | eMMC 4GB + LPDDR2 1GB | x8, x32 | 1066 | 162FBGA | Development |
| KMKUS000VM | eMMC 8GB + LPDDR2 1GB | x8, x32 | 1066 | 162FBGA | Mass Production |
| KMK7U000VM | eMMC 8GB + LPDDR2 1GB | x8, x32 | 1066 | 162FBGA | Mass Production |
| KMK7X000VM | eMMC 8GB + LPDDR2 1GB | x8, x32 | 1066 | 162FBGA | Development |
| KMK8X000VM | eMMC 16GB + LPDDR2 1GB | x8, x32 | 1066 | 162FBGA | Development |
| KMK8U000VM | eMMC 16GB + LPDDR2 1GB | x8, x32 | 1066 | 162FBGA | Mass Production |
| KMK3U000VM | eMMC 16GB + LPDDR2 1GB | x8, x32 | 1066 | 186FBGA | Mass Production |
| KMI8U000MM | eMMC 16GB + LPDDR2 2GB | x8, x32 | 1066 | 186FBGA | Development |
| KMI8X000VM | eMMC 16GB + LPDDR2 2GB | x8, x32 | 1066 | 162FBGA | Development |
| KMK2U000VM | eMMC 32GB + LPDDR2 1GB | x8, x32 | 1066 | 186FBGA | Mass Production |
| KMI4Z000MM | eMMC 32GB + LPDDR2 2GB | x8, x32 | 1066 | 162FBGA | Development |
| KMK1U000VM | eMMC 64GB + LPDDR2 1GB | x8, x32 | 1066 | 186FBGA | Mass Production |
Series Overview
Samsung eMCP (embedded Multi-Chip Package) LPDDR2 series integrates NAND Flash and low-power DRAM (or Mobile RAM) in a single BGA package. MCP technology enables high performance by reducing interference and improving communication between the NAND Flash and DRAM. Compared to two separate TSOP chips, MCP saves up to 70% of board space, reducing PCB footprint by 30%-40% on average. This packaging solution simplifies manufacturing, lowers cost, and accelerates product development and time-to-market.
Samsung eMCP combines eMMC storage and low-power DRAM in one package to meet the increasing storage demands of modern smartphones, especially with larger OS and app code requirements on Android devices.
Available Configurations
- eMMC 4GB + LPDDR2 256MB – 1GB
- eMMC 8GB + LPDDR2 1GB
- eMMC 16GB + LPDDR2 1GB / 2GB
- eMMC 32GB + LPDDR2 1GB / 2GB
- eMMC 64GB + LPDDR2 1GB
