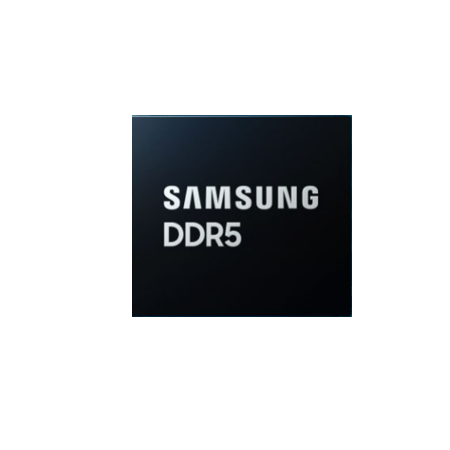

Samsung DDR5 DRAM

Basic Information

Category: Memory Chip

Brand: Samsung

Applications

Laptop · Server · Telecom · Memory Module

Key Specifications

Model: K4RAH086VB-BCWM | Density: 16Gb | Organization: 2G x 8 | Data Rate: 5600 Mbps

Model: K4RAH086VB-BIQK | Density: 16Gb | Organization: 2G x 8 | Data Rate: 4800 Mbps

Model: K4RAH086VB-BIWM | Density: 16Gb | Organization: 2G x 8 | Data Rate: 5600 Mbps

Model: K4RAH086VP-BCWM | Density: 16Gb | Organization: 2G x 8 | Data Rate: 5600 Mbps

Model: K4RAH165VB-BCWM | Density: 16Gb | Organization: 1G x 16 | Data Rate: 5600 Mbps

Model: K4RAH165VB-BIQK | Density: 16Gb | Organization: 1G x 16 | Data Rate: 4800 Mbps

Model: K4RAH165VB-BIWM | Density: 16Gb | Organization: 1G x 16 | Data Rate: 5600 Mbps

Model: K4RAH165VP-BCWM | Density: 16Gb | Organization: 1G x 16 | Data Rate: 5600 Mbps

Model: K4RHE086VB-BCWM | Density: 24Gb | Organization: 2G x 8 | Data Rate: 5600 Mbps

Model: K4RHE165VB-BCWM | Density: 24Gb | Organization: 1G x 16 | Data Rate: 5600 Mbps

Model: K4RCH046VM-2CLP | Density: 32Gb | Organization: 4G x 4 | Data Rate: 6400 Mbps

Model: K4RBH046VM-BCCP | Density: 32Gb | Organization: 2G x 4 | Data Rate: 6400 Mbps

Model: K4RCH046VM-2CCM | Density: 32Gb | Organization: 4G x 4 | Data Rate: 5600 Mbps

Model: K4RBH046VM-BCWM | Density: 32Gb | Organization: 2G x 4 | Data Rate: 5600 Mbps

Model: K4RAH086VB-BCQK | Density: 16Gb | Organization: 2G x 8 | Data Rate: 4800 Mbps

Model: K4RAH165VB-BCQK | Density: 16Gb | Organization: 1G x 16 | Data Rate: 4800 Mbps

Product Description

DDR5 (Double Data Rate 5) synchronous DRAM introduces new levels of speed, improved capacity, and enhanced reliability to increase overall system performance. It is designed to handle growing workloads and larger, more complex data processing demands.

DDR5 supports data transfer rates of up to 7,200 Mbps, delivering more than double the performance of DDR4. The burst length is doubled from 8 to 16, and the number of memory banks increases from 16 to 32, enabling efficient handling of high-resolution content such as 8K.

Using Samsung’s 10nm-class process technology and EUV lithography, high-capacity DDR5 memory modules of up to 512GB have been developed.
