Key Features

·       16GB DDR4 Registered DIMM (RDIMM) with ECC support for error detection and correction

·       288-pin module, designed for server and enterprise applications

·       High-speed data transfer rates: DDR4-2933 and DDR4-3200

·       Single-rank configuration with 16 internal banks (4 groups x 4 banks each)

·       Enhanced reliability with Data Bus Inversion (DBI) and ECC

·       Operating temperature range: 0°C to +95°C

·       Module bandwidth: up to 25.6 GB/s at DDR4-3200

Product Overview

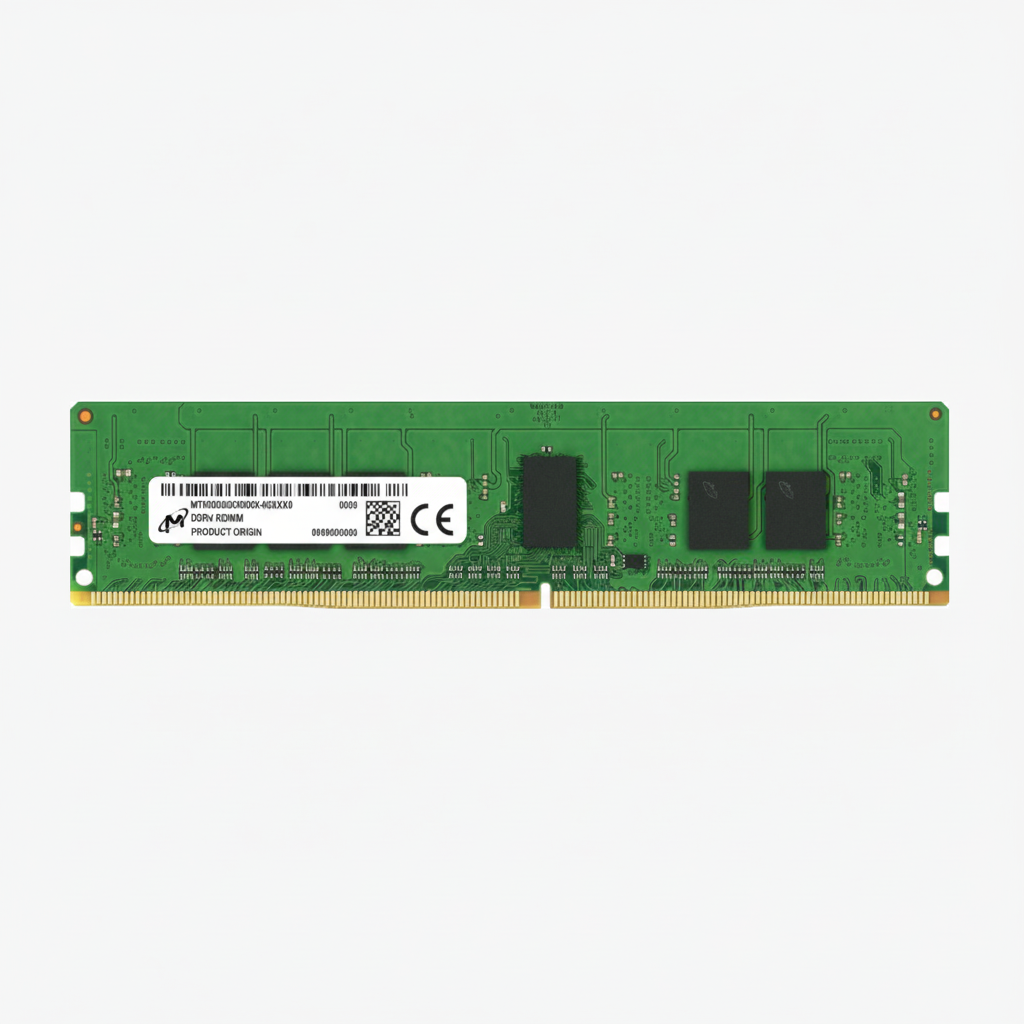

The Micron MTA9ASF2G72PZ is a 16GB DDR4 Registered DIMM (RDIMM) designed for high-performance servers and enterprise platforms requiring stability, speed, and reliability. It operates at data transfer rates up to 3200 MT/s, providing a bandwidth of 25.6 GB/s. This single-rank module features 288 pins, error-correcting code (ECC), and Data Bus Inversion (DBI) to optimize signal integrity and ensure dependable operation in demanding environments.

Technical Specifications

Parameter	Specification
Module Type	288-Pin Registered DIMM (RDIMM)
Capacity	16GB
Organization	2 Gig x 72
Rank	Single Rank (SR)
ECC Support	Yes (Error Correction Code)
Data Rate	DDR4-2933 / DDR4-3200
Module Bandwidth	23.47 GB/s @2933 / 25.6 GB/s @3200
CAS Latency	CL=21 (2933 MT/s) / CL=22 (3200 MT/s)
Operating Temperature	0°C to +95°C
Base Device	Micron MT40A2G8, 16Gb DDR4 SDRAM

Application Scenarios

This module is ideally suited for enterprise-class servers, high-performance computing systems, and data centers that require robust memory performance, reliability, and advanced error correction capabilities.

Frequently Asked Questions (FAQs)

·       Q: What is the maximum data transfer rate supported by the Micron MTA9ASF2G72PZ?

A: This module supports up to DDR4-3200 MT/s, delivering a maximum bandwidth of 25.6 GB/s.

·       Q: Does this RDIMM support ECC functionality?

A: Yes, it supports error detection and correction (ECC), ensuring higher data reliability in mission-critical systems.

·       Q: What is the operating temperature range for this memory module?

A: The module is designed to operate within a temperature range of 0°C to +95°C.

·       Q: What is the rank configuration of this module?

A: It is a single-rank (SR) module, optimized for efficient performance and compatibility with enterprise platforms.
