Key Features

·       High-speed DDR3 SDRAM module supporting data rates up to 1600 MT/s

·       240-pin unbuffered dual in-line memory module (UDIMM)

·       Module density: 4GB (512 Meg x 64) configuration

·       Nominal supply voltage: VDD = VDDQ = 1.5V ±0.075V

·       Serial Presence Detect (SPD) EEPROM for easy system integration

·       Gold edge contacts and halogen-free design

·       Fly-by topology for improved signal integrity

·       Reset pin and on-die termination (ODT) for stability

Product Description

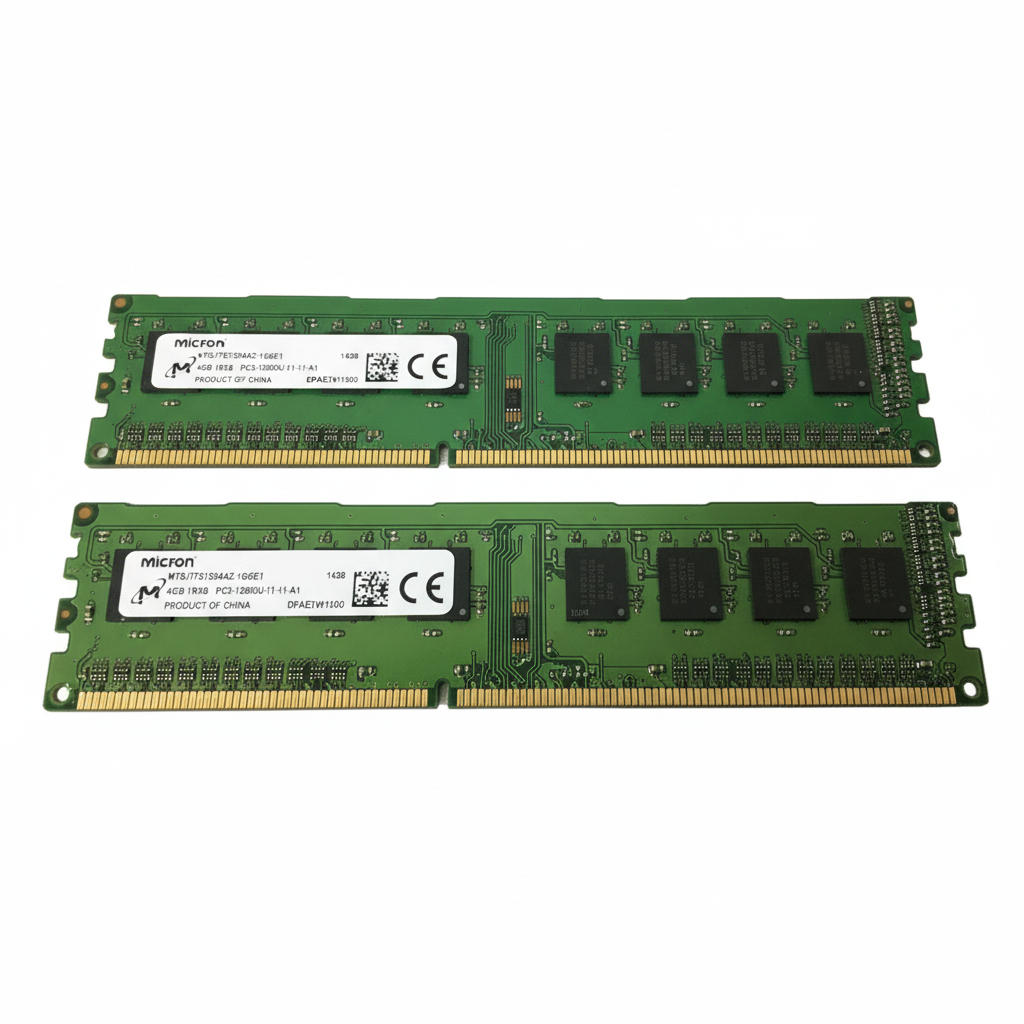

The Micron MT8JTF51264AZ-1G6E1 is a 4GB DDR3 SDRAM unbuffered dual in-line memory module (UDIMM) designed for high-performance computing systems. Built with advanced DDR3 technology, this module supports fast transfer rates and low power consumption, making it suitable for desktops, embedded systems, and industrial applications. With its 240-pin UDIMM layout, halogen-free design, and gold edge contacts, it ensures reliable connectivity and compliance with modern environmental standards.

Technical Specifications

Parameter	Specification
Module Density	4GB (512 Meg x 64)
Data Rate	1600 MT/s (PC3-12800)
CAS Latency (CL)	11-11-11
Module Bandwidth	12.8 GB/s
Voltage	1.5V ±0.075V
Pins	240-pin UDIMM
Burst Length	8 (via mode register set)
Operating Temperature	0°C to +70°C (commercial)
Package	Halogen-free, gold edge contacts
Topology	Fly-by command, control, and address bus

FAQs

·       Q: What is the operating voltage of the Micron MT8JTF51264AZ-1G6E1 module?

A: The module operates at VDD = VDDQ = 1.5V ±0.075V, with VDDSPD at 3.0V to 3.6V.

·       Q: Which systems are compatible with this DDR3 UDIMM module?

A: It is designed for desktops, industrial systems, and embedded platforms that support 240-pin DDR3 UDIMM memory modules.

·       Q: What is the maximum supported data transfer rate?

A: This module supports data transfer rates up to 1600 MT/s, equivalent to PC3-12800 industry standards.

·       Q: Does the module support thermal sensors?

A: Yes, it includes an SPD EEPROM for configuration and supports advanced thermal and system monitoring functions.
