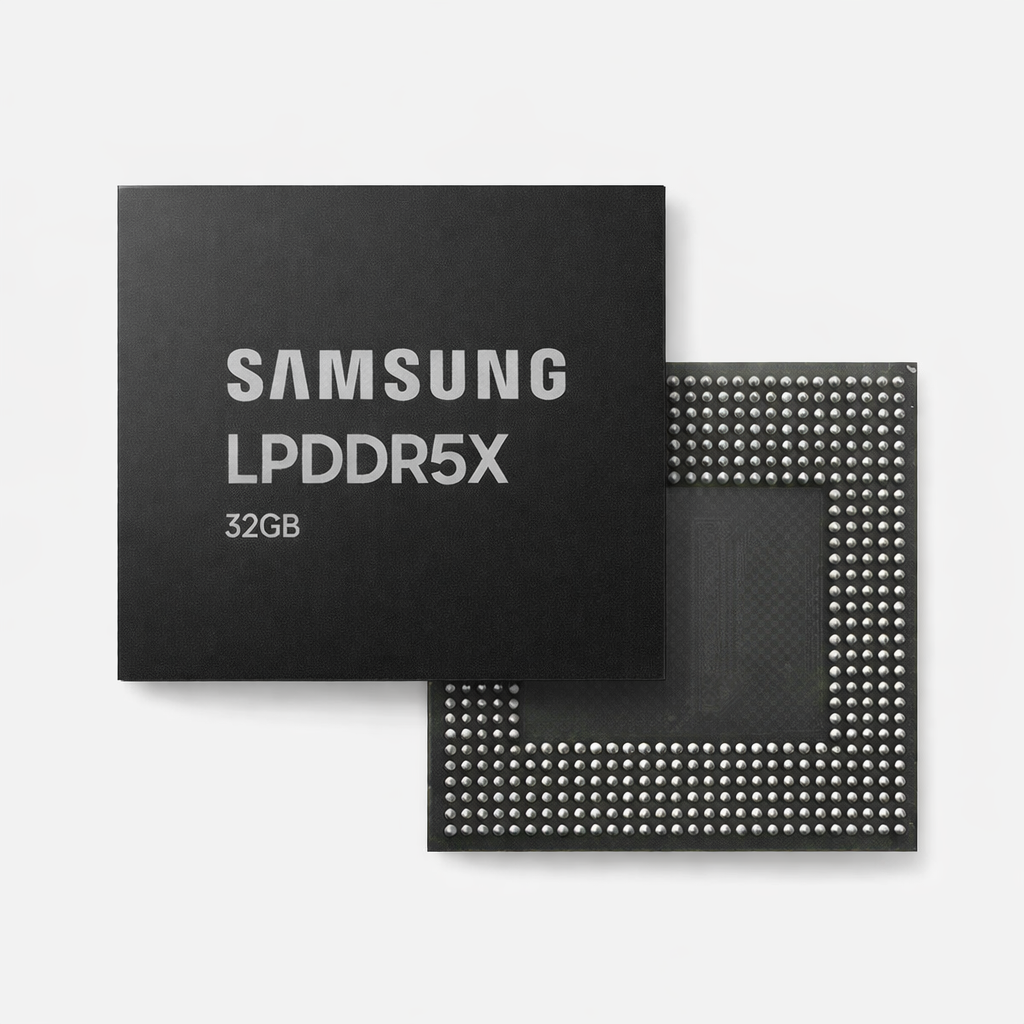

Samsung LPDDR5X – 32GB – x32 Mobile DRAM

Samsung LPDDR5X – 32GB – x32 Mobile DRAM

Samsung LPDDR5X 32GB (x32 organization) is engineered for high-density mobile and embedded platforms requiring both bandwidth and power efficiency. Built on advanced process technology, this generation of low-power DRAM supports data rates up to 8.5Gbps while maintaining reduced operating voltage and improved thermal characteristics.

Compared with LPDDR4X, LPDDR5X increases effective memory bandwidth and enhances signal integrity through optimized I/O architecture and improved power management. It is widely deployed in smartphones, automotive electronics, and high-performance embedded systems.

Performance Architecture

• Data rate up to 8.5Gbps per pin
• x32 channel configuration for balanced PCB routing
• Enhanced command/address timing stability
• Improved prefetch architecture
• Reduced operating voltage for lower active and standby power

The x32 configuration simplifies high-speed layout constraints and improves signal margin in compact mobile platforms.

Power Optimization & DVFS Support

Integrated Dynamic Voltage and Frequency Scaling (DVFS) allows the system to dynamically adjust voltage and frequency according to workload demand. This reduces idle power consumption and extends battery life in mobile devices while maintaining performance under load.

• Lower idle and standby power
• Improved thermal control under sustained workloads
• Optimized performance for 5G and AI-enabled devices

Reliability & Automotive Compatibility

LPDDR5X is designed to operate across extended temperature ranges and selected configurations align with automotive qualification standards such as AEC-Q100. This makes it suitable for digital cockpit systems, ADAS platforms, and embedded AI modules.

General Specifications

• Memory Type: LPDDR5X
• Capacity: 32GB
• Organization: x32
• Maximum Data Rate: Up to 8.5Gbps
• Process Technology: Advanced sub-15nm class
• Power Efficiency Improvement: Approx. 20% vs LPDDR4X
• Application Areas: Smartphones, automotive electronics, edge computing

Part Number

K3KL8L80CM-MGCT

Industry Search References

This product is frequently searched under terms such as LPDDR5X 32GB mobile memory chip, Samsung LPDDR5X x32 DRAM solution, and automotive grade LPDDR5X memory.
