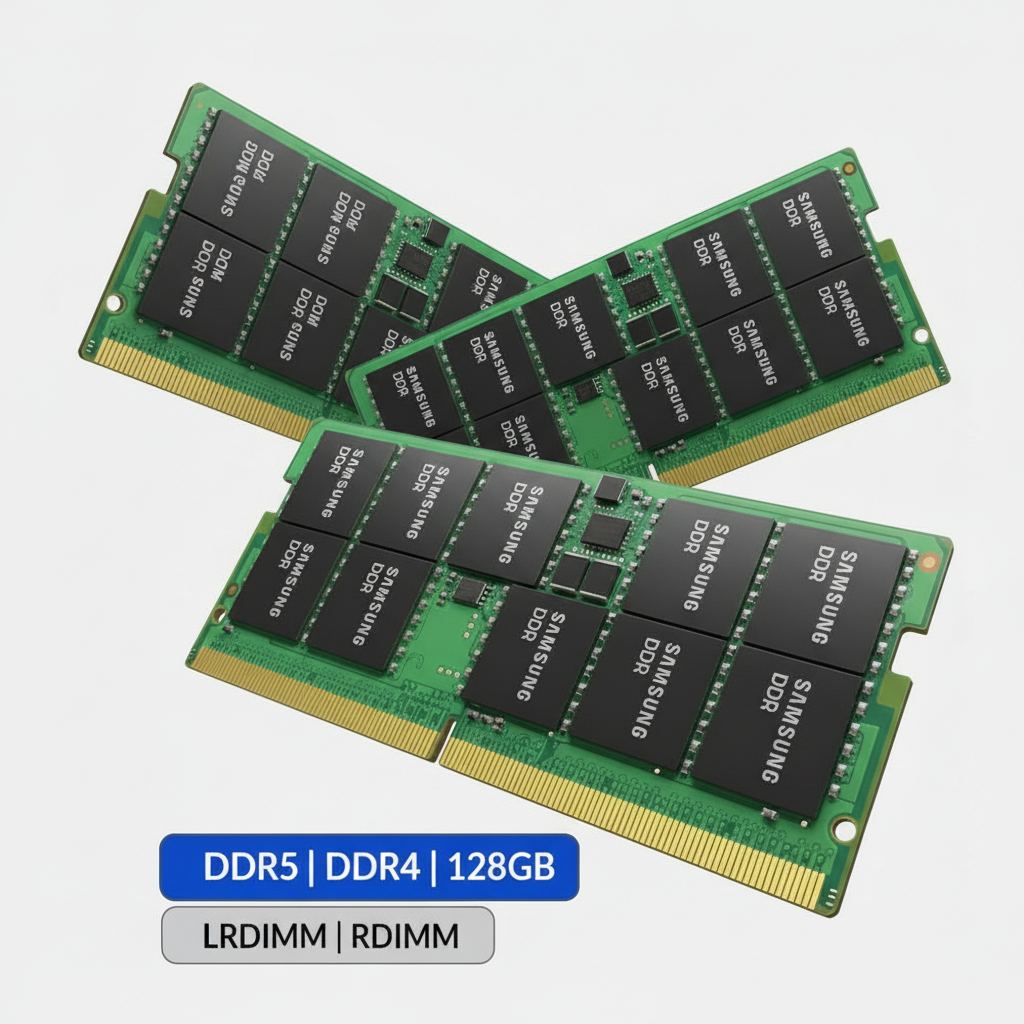

DRAM Module Samsung DDR4 / DDR5 – 128GB

DRAM Module Samsung DDR4 / DDR5 – 128GB

RDIMM | LRDIMM | Server Application

Samsung 128GB DRAM modules based on DDR4 and DDR5 architecture are designed for high-density server platforms requiring stable electrical loading and scalable memory topology. DDR4 variants operate at 1.2V, reducing I/O power compared to DDR3 systems while maintaining higher effective bandwidth. DDR5 configurations further improve bank structure efficiency and internal parallelism.

For system architects deploying samsung 128gb ddr5 lrdimm in enterprise nodes or configuring 128gb ddr4 registered dimm memory for data center environments, module buffering architecture is a primary selection factor.

Architecture Overview

• LRDIMM (Load Reduced DIMM) – Integrates both command/address register buffering and a data buffer. This reduces electrical loading on the memory controller and enables higher density per channel. Supports x4 organization, up to 4 ranks per DIMM and 3DPC configurations. Commonly used in virtualization clusters and database servers where channel population is high.
• RDIMM (Registered DIMM) – Includes a register for command and control signal stabilization. ECC parity extension is available for error detection and correction. Supports x4 / x8 organization, up to 2 ranks per DIMM and 3DPC configuration. Suitable for balanced server memory layouts.

At 128GB per module, overall DIMM population can be reduced while maintaining total system capacity. This is relevant in enterprise ddr5 server memory module deployments where slot count and airflow management are design constraints.

Part Number List

Technical FAQ

1. When should LRDIMM be selected instead of RDIMM at 128GB density?
LRDIMM is preferred when maximizing memory per channel. The integrated data buffer reduces signal loading, allowing higher stable population in multi-DIMM configurations.

2. Is ECC mandatory in 128GB server deployments?
In enterprise environments, ECC is strongly recommended. Larger capacity increases the probability of memory bit errors over time, and parity-based correction improves long-term stability.

3. Are DDR4 and DDR5 128GB modules interchangeable?
No. DDR4 and DDR5 differ in pin configuration, voltage regulation, and signaling standards. Platform compatibility must match CPU generation and motherboard chipset.
